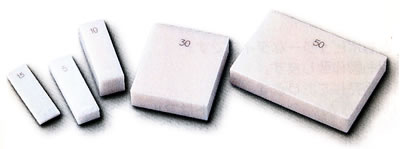

■用途
●一般測定、検査用の基準ゲージとして
●スペースブロックや高付加価値部品として使用
■断面寸法
10mm以下・・・30(0~10.3)×9(-0.05~-0.2)mm
10を超え100mm以下・・・35(0~-0.3)×9(-0.05~-0.2)mm
■熱膨張係数
(9.5±1)×10-6/K
■寸法精度規格
呼び寸法(mm) |
0級 |
を超え |
以下 |
寸法公差(μm) |
許容寸法偏差(μm) |
- |
10 |
±0.12 |
0.10 |
10 |
25 |
±0.14 |
0.10 |
25 |
50 |
±0.20 |
0.10 |
50 |
75 |
±0.25 |
0.12 |
75 |
100 |
±0.30 |
0.12 |
■仕様(セット品)
品番 |
組数(個組) |
寸法区分(mm) |
呼び寸法(mm) |
個数 |
質量 |
価格 |
ME9C-032 |
32 |
- |
1.005 |
1 |
950g |
¥145,600- |
0.01 |
1.01•1.02…1.09 |
9 |
0.1 |
1.1•1.2…1.9 |
9 |
1 |
1•2•3…9 |
9 |
10 |
10•20•30 |
3 |
- |
50 |
1 |
ME9C-047 |
47 |
- |
1.005 |
1 |
2.25kg |
¥265,000- |
0.01 |
1.01•1.02…1.09 |
9 |
0.1 |
1.1•1.2…1.9 |
9 |
1 |
1•2•3…24 |
24 |
25 |
25•50•75•100 |
4 |
■単品販売も致しております。
品番 |
規格(mm) |
価格 |
品番 |
規格(mm) |
価格 |
ME9C0-10 |
1 |
¥4,500- |
ME9C0-700 |
7 |
¥6,600- |
ME9C0-1-005 |
1.005 |
¥8,000- |
ME9C0-800 |
8 |
¥6,600- |
ME9C0-101 |
1.01 |
¥4,500- |
ME9C0-900 |
9 |
¥6,600- |
ME9C0-102 |
1.02 |
¥4,500- |
ME9C0-1000 |
10 |
¥6,600- |
ME9C0-103 |
1.03 |
¥4,500- |
ME9C0-1100 |
11 |
¥8,100- |
ME9C0-104 |
1.04 |
¥4,500- |
ME9C0-1200 |
12 |
¥8,100- |
ME9C0-105 |
1.05 |
¥4,500- |
ME9C0-1300 |
13 |
¥8,100- |
ME9C0-106 |
1.06 |
¥4,500- |
ME9C0-1400 |
14 |
¥8,100- |
ME9C0-107 |
1.07 |
¥4,500- |
ME9C0-1500 |
15 |
¥8,100- |
ME9C0-108 |
1.08 |
¥4,500- |
ME9C0-1600 |
16 |
¥10,100- |
ME9C0-109 |
1.09 |
¥4,500- |
ME9C0-1700 |
17 |
¥10,100- |
ME9C0-110 |
1.1 |
¥4,500- |
ME9C0-1800 |
18 |
¥10,100- |
ME9C0-120 |
1.2 |
¥4,500- |
ME9C0-1900 |
19 |
¥10,100- |
ME9C0-130 |
1.3 |
¥4,500- |
ME9C0-2000 |
20 |
¥10,100- |
ME9C0-140 |
1.4 |
¥4,500- |
ME9C0-2100 |
21 |
¥11,000- |
ME9C0-150 |
1.5 |
¥5,300- |
ME9C0-2200 |
22 |
¥11,000- |
ME9C0-160 |
1.6 |
¥5,300- |
ME9C0-2300 |
23 |
¥11,000- |
ME9C0-170 |
1.7 |
¥5,300- |
ME9C0-2400 |
24 |
¥11,000- |
ME9C0-180 |
1.8 |
¥5,300- |
ME9C0-2500 |
25 |
¥11,000- |
ME9C0-190 |
1.9 |
¥5,300- |
ME9C0-3000 |
30 |
¥11,800- |
ME9C0-200 |
2 |
¥5,800- |
ME9C0-5000 |
50 |
¥16,400- |
ME9C0-300 |
3 |
¥5,800- |
ME9C0-6000 |
60 |
¥18,200- |
ME9C0-400 |
4 |
¥5,800- |
ME9C0-7500 |
75 |
¥22,800- |
ME9C0-500 |
5 |
¥5,800- |
ME9C0-10000 |
100 |
¥28,300- |
ME9C0-600 |
6 |
¥6,600- |
|
|
|
|
