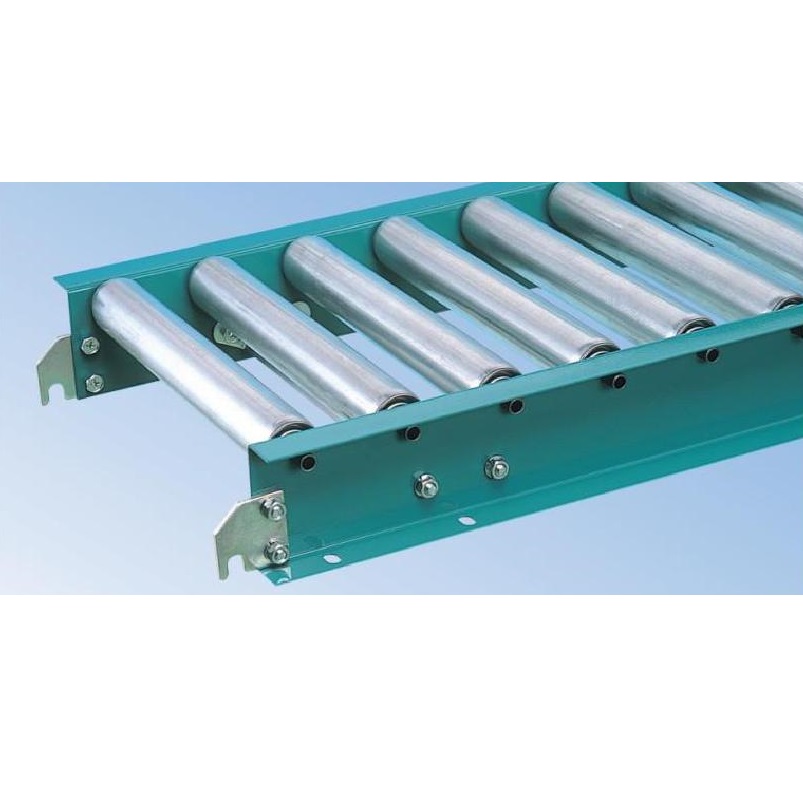

スチールローラーコンベヤ(中荷重)Φ42.7
品番 M563S42-150510M |
【詳細表示】
|
商品番号 |
M563S42-150510M |
価 格 |
|
スチールローラーコンベヤ
中荷重タイプ
ローラーφ42.7 |
スチールローラーコンベヤ(中荷重)Φ42.7
品番 M563S42-150510M
価格は下記をご覧ください |

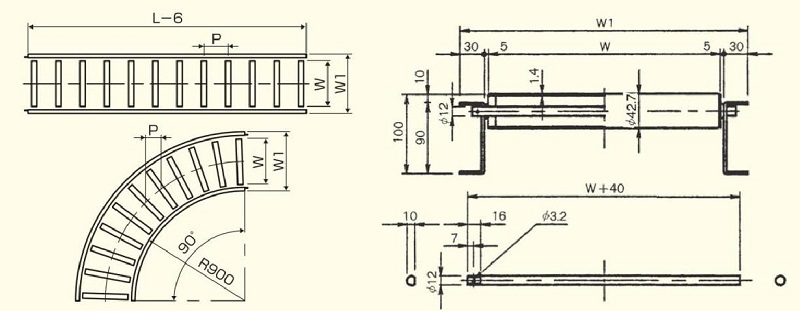

■寸法図
■フレーム耐荷重
脚取付間隔(mm) |
1000 |
1500 |
2000 |
3000 |
床置/m |
許容荷重(kg) |
1200 |
530 |
300 |
90 |
1200 |
ローラ |
φ42.7×1.4 |
ベアリング |
スチールボールベアリング |
シャフト |
φ12パイプ |
フレーム |
SS [90×30×2.3 |
■仕様(mm)
●ストレート
品番 |
ローラ幅
(W) |
フレーム幅
(W1) |
ローラピッチ
(P) |
機長
(L) |
製品重量
(kg) |
ローラ1本
許容静荷重(kg) |
M563S42-150510M |
150 |
220 |
50 |
1000 |
12.7 |
130 |
M563S42-150515M |
1500 |
19.2 |
M563S42-150520M |
2000 |
25.3 |
M563S42-150530M |
3000 |
37.4 |
M563S42-150710M |
77 |
1000 |
10.4 |
M563S42-150715M |
75 |
1500 |
15.2 |
M563S42-150720M |
77 |
2000 |
20 |
M563S42-150730M |
75 |
3000 |
30.6 |
M563S42-151010M |
100 |
1000 |
9.4 |
M563S42-151015M |
1500 |
13.7 |
M563S42-151020M |
2000 |
17.6 |
M563S42-151030M |
3000 |
26.7 |
M563S42-151510M |
154 |
1000 |
8.3 |
M563S42-151515M |
150 |
1500 |
12.4 |
M563S42-151520M |
154 |
2000 |
15.9 |
M563S42-151530M |
150 |
3000 |
23.5 |
M563S42-200510M |
200 |
270 |
50 |
1000 |
14.5 |
M563S42-200515M |
1500 |
21.8 |
M563S42-200520M |
2000 |
28.7 |
M563S42-200530M |
3000 |
42.6 |
M563S42-200710M |
77 |
1000 |
11.6 |
M563S42-200715M |
75 |
1500 |
17.1 |
M563S42-200720M |
77 |
2000 |
22.3 |
M563S42-200730M |
75 |
3000 |
34.1 |
M563S42-201010M |
100 |
1000 |
10.3 |
M563S42-201015M |
1500 |
15.1 |
M563S42-201020M |
2000 |
19.5 |
M563S42-201030M |
3000 |
29.4 |
M563S42-201510M |
154 |
1000 |
9 |
M563S42-201515M |
150 |
1500 |
13.5 |
M563S42-201520M |
154 |
2000 |
17.2 |
M563S42-201530M |
150 |
3000 |
25.5 |
M563S42-300510M |
300 |
370 |
50 |
1000 |
18.1 |
100 |
M563S42-300515M |
1500 |
27.1 |
M563S42-300520M |
2000 |
35.6 |
M563S42-300530M |
3000 |
53 |
M563S42-300710M |
77 |
1000 |
14 |
M563S42-300715M |
75 |
1500 |
20.9 |
M563S42-300720M |
77 |
2000 |
27 |
M563S42-300730M |
75 |
3000 |
41.1 |
M563S42-301010M |
100 |
1000 |
12.2 |
M563S42-301015M |
1500 |
18 |
M563S42-301020M |
2000 |
23.3 |
M563S42-301030M |
3000 |
34.9 |
M563S42-301510M |
154 |
1000 |
10.4 |
M563S42-301515M |
150 |
1500 |
15.7 |
M563S42-301520M |
154 |
2000 |
19.9 |
M563S42-301530M |
150 |
3000 |
29.5 |
M563S42-400510M |
400 |
470 |
50 |
1000 |
21.7 |
85 |
M563S42-400515M |
1500 |
32.4 |
M563S42-400520M |
2000 |
42.5 |
M563S42-400530M |
3000 |
63.4 |
M563S42-400710M |
77 |
1000 |
16.4 |
M563S42-400715M |
75 |
1500 |
24.7 |
M563S42-400720M |
77 |
2000 |
31.7 |
M563S42-400730M |
75 |
3000 |
48.1 |
M563S42-401010M |
100 |
1000 |
14.1 |
M563S42-401015M |
1500 |
20.9 |
M563S42-401020M |
2000 |
27.1 |
M563S42-401030M |
3000 |
40.4 |
M563S42-401510M |
154 |
1000 |
11.8 |
M563S42-401515M |
150 |
1500 |
17.9 |
M563S42-401520M |
154 |
2000 |
22.6 |
M563S42-401530M |
150 |
3000 |
33.5 |
M563S42-500510M |
500 |
570 |
50 |
1000 |
25.3 |
65 |
M563S42-500515M |
1500 |
37.7 |
M563S42-500520M |
2000 |
49.4 |
M563S42-500530M |
3000 |
73.8 |
M563S42-500710M |
77 |
1000 |
18.8 |
M563S42-500715M |
75 |
1500 |
28.5 |
M563S42-500720M |
77 |
2000 |
36.4 |
M563S42-500730M |
75 |
3000 |
55.1 |
M563S42-501010M |
100 |
1000 |
16 |
M563S42-501015M |
1500 |
23.8 |
M563S42-501020M |
2000 |
30.9 |
M563S42-501030M |
3000 |
45.9 |
M563S42-501510M |
154 |
1000 |
13.2 |
M563S42-501515M |
150 |
1500 |
20.1 |
M563S42-501520M |
154 |
2000 |
25.3 |
M563S42-501530M |
150 |
3000 |
37.5 |
M563S42-600510M |
600 |
670 |
50 |
1000 |
28.9 |
50 |
M563S42-600515M |
1500 |
43 |
M563S42-600520M |
2000 |
56.3 |
M563S42-600530M |
3000 |
84.2 |
M563S42-600710M |
77 |
1000 |
21.2 |
M563S42-600715M |
75 |
1500 |
32.3 |
M563S42-600720M |
77 |
2000 |
41.1 |
M563S42-600730M |
75 |
3000 |
62.1 |
M563S42-601010M |
100 |
1000 |
17.9 |
M563S42-601015M |
1500 |
20.7 |
M563S42-601020M |
2000 |
34.7 |
M563S42-601030M |
3000 |
51.4 |
M563S42-601510M |
154 |
1000 |
14.6 |
M563S42-601515M |
150 |
1500 |
22.3 |
M563S42-601520M |
154 |
2000 |
29.1 |
M563S42-601530M |
150 |
3000 |
41.5 |
M563S42-700510M |
700 |
770 |
50 |
1000 |
32.5 |
35 |
M563S42-700515M |
1500 |
48.3 |
M563S42-700520M |
2000 |
63.2 |
M563S42-700530M |
3000 |
94.6 |
M563S42-700710M |
77 |
1000 |
23.6 |
M563S42-700715M |
75 |
1500 |
36.1 |
M563S42-700720M |
77 |
2000 |
45.8 |
M563S42-700730M |
75 |
3000 |
69.1 |
M563S42-701010M |
100 |
1000 |
19.8 |
M563S42-701015M |
1500 |
29.6 |
M563S42-701020M |
2000 |
38.5 |
M563S42-701030M |
3000 |
56.9 |
M563S42-701510M |
154 |
1000 |
16 |
M563S42-701515M |
150 |
1500 |
24.5 |
M563S42-701520M |
154 |
2000 |
31.8 |
M563S42-701530M |
150 |
3000 |
45.5 |
M563S42-800510M |
800 |
870 |
50 |
1000 |
36.1 |
20 |
M563S42-800515M |
1500 |
53.6 |
M563S42-800520M |
2000 |
70.1 |
M563S42-800530M |
3000 |
105 |
M563S42-800710M |
77 |
1000 |
26 |
M563S42-800715M |
75 |
1500 |
39.9 |
M563S42-800720M |
77 |
2000 |
50.5 |
M563S42-800730M |
75 |
3000 |
76.1 |
M563S42-801010M |
100 |
1000 |
21.7 |
M563S42-801015M |
1500 |
32.5 |
M563S42-801020M |
2000 |
42.3 |
M563S42-801030M |
3000 |
62.4 |
M563S42-801510M |
154 |
1000 |
17.4 |
M563S42-801515M |
150 |
1500 |
26.7 |
M563S42-801520M |
154 |
2000 |
34.5 |
M563S42-801530M |
150 |
3000 |
49.5 |
●カーブ
品番 |
ローラ幅
(W) |
フレーム幅
(W1) |
ローラピッチ
(P) |
機長
(L) |
製品重量
(kg) |
ローラ1本
許容静荷重(kg) |
M563S42-150790M |
150 |
220 |
70 |
90° |
16.4 |
130 |
M563S42-151090M |
86 |
14.8 |
M563S42-151590M |
128 |
11.3 |
M563S42-200790M |
200 |
270 |
72 |
18.6 |
M563S42-201090M |
88 |
16.7 |
M563S42-201590M |
132 |
14.1 |
M563S42-300790M |
300 |
370 |
75 |
23 |
100 |
M563S42-301090M |
92 |
20.5 |
M563S42-301590M |
138 |
16.9 |
M563S42-400790M |
400 |
470 |
79 |
27.4 |
85 |
M563S42-401090M |
96 |
24.3 |
M563S42-401590M |
145 |
19.7 |
M563S42-500790M |
500 |
570 |
82 |
31.8 |
65 |
M563S42-501090M |
101 |
28.1 |
M563S42-501590M |
151 |
22.5 |
M563S42-600790M |
600 |
670 |
86 |
36.2 |
50 |
M563S42-601090M |
105 |
31.9 |
M563S42-601590M |
158 |
25.3 |
M563S42-700790M |
700 |
770 |
90 |
40.6 |
35 |
M563S42-701090M |
110 |
35.77 |
M563S42-701590M |
164 |
28.1 |
M563S42-800790M |
800 |
870 |
93 |
45 |
20 |
M563S42-801090M |
114 |
39.5 |
M563S42-801590M |
171 |
30.9 |
|
運賃、および消費税は、記載価格には、含まれていません。
