■特長
●テーパー型容器専用台車です。(対応テーパー容器は下記をご覧ください。)
■タイプ
ME22KM43-TPN/ME22KM47-TPN |
ME22KM565-TPN/ME22KM565H-TPN |
 |
 |
ME22KMS43-TPN/ME22KMS47-TPN |
ME22KMS565-TPN/ME22KMS565H-TPN |
 |
 |
■寸法図

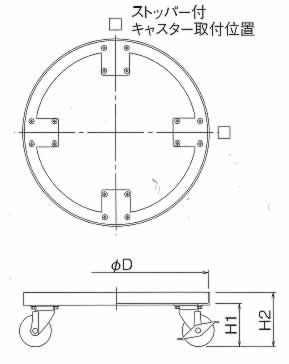

ME22KM43-TPN/ME22KM47-TPN
ME22KMS43-TPN/ME22KMS47-TPN |

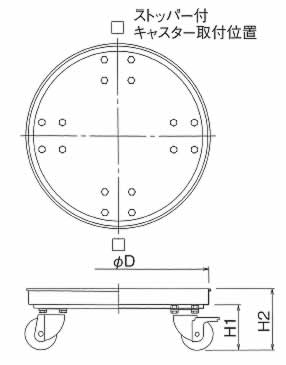

ME22KM565-TPN/ME22KM565H-TPN
ME22KMS565-TPN/ME22KMS565H-TPN |
 |
 |
■仕様 (mm)
品番 |
台車本体 |
キャスター |
ボルト
(皿ネジ)
・ナット |
ストッパー |
金具 |
車輪 |
ME22KM43-TPN |
SUS304 |
SS
(ユニクロームメッキ) |
ゴム車 |
SUS304 |
- |
ME22KM47-TPN |
SUS304 |
- |
ME22KM565-TPN |
SUS304 |
- |
ME22KM565H-TPN |
SUS304 |
- |
ME22KMS43-TPN |
SUS304 |
SUS304 |
ナイロン
ウレンタン車 |
6ナイロン
+
30%ガラス繊維 |
ME22KMS47-TPN |
SUS304 |
ME22KMS565-TPN |
SUS304 |
- |
ME22KMS565H-TPN |
SUS304 |
- |
※ME22KM565-TPN/ME22KM565H-TPN/ME22KMS565-TPN/ME22KMS565H-TPNは皿ねじとなります。
品番 |
内径 |
高さ |
全高 |
車輪径 |
耐荷重 |
自在キャスター |
価格 |
D |
H1 |
H2 |
φ |
kg |
ME22KM43-TPN |
418 |
101 |
136 |
75 |
179 |
4個
(内ストッパー付2個) |
¥31,100l- |
ME22KM47-TPN |
460 |
101 |
136 |
75 |
179 |
¥34,000- |
ME22KM565-TPN |
560 |
135 |
170 |
100 |
390 |
¥76,300- |
ME22KM565H-TPN |
546 |
135 |
170 |
100 |
390 |
¥76,300- |
ME22KMS43-TPN |
418 |
101 |
136 |
75 |
259 |
¥45,900- |
ME22KMS47-TPN |
460 |
101 |
136 |
75 |
259 |
¥48,800- |
ME22KMS565-TPN |
560 |
135 |
170 |
100 |
390 |
¥110,300- |
ME22KMS565H-TPN |
546 |
135 |
170 |
100 |
390 |
¥110,300- |
|
