Compact Digital Angle Sensor　RE-36
	This is a small digital angle sensor with a built-in coupling. A minimum reading of 1 minute (0.01°) has been realized in a small-sized sensor.	Compact Digital Angle Sensor Part Number : RE-36 Praice　￥37,000-

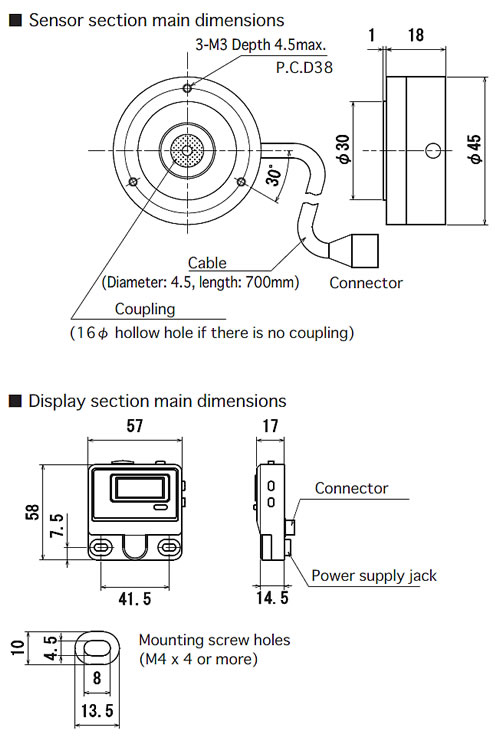

■Features ●The small body in a diameter of 45mm with a built-in coupling makes the installation easy and the equipment after installation is smart. ●Even the LCD display section is small and can be mounted anywhere. ●The coupling is in the hollow shaft of 16mm dia. ●With various functions such as display mode selection 0°0’ (sexagestimal) and 0.00°(decimal), preset and etc. ●Many different measurements are possible by using various accessories. ●Battery powered can be used where no power supply is available. (An optional AC adapter is available.) ●With data output. ■Specification Part Number RE-36 Measurement range 250° (The rotation is endless.) Minimum reading 1’ or 0.01° Instrument error ±5’ Display unit 0° 0’ (base of 60) or 0.00° (decimal) Power supply 3V DC Battery life About 80 hours (UM-4 type alkaline dry battery cells x 2 pcs) Main unit weight 150g approx. Functions Count up direction selection, preset, displayed value hold Data output*1/2 Mitutoyo digimatic output Accessories Battery case, monitor batteries (UM-4 type alkaline dry battery cells x 2 pcs) Optional accessory AC adapter *1 Connector shape: Compatible with Mitutoyo connection cable (flat type) *2 Not all Mitutoyo products are compatible. ■dimensions

Above prices do not include shipping fee and consumption tax, please ask for more information.
