Height Gauge Bevel　HG-36

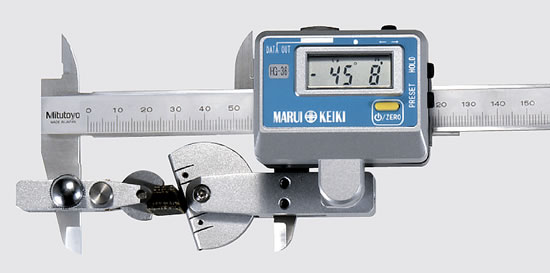

This is digital protractor with totally new concept to measure the angle by attached on a height gauge or vernier calipers easily. Height Gauge Bevel
Part Number : HG-36
Praice　￥39,500-
■Features
●Easy and stable measurements can be made by merely applying this HG-36 to the work-piece.
●Can be attached to or detached from a calipers or height gauge easily.
●With various functions such as display mode selection between 0°0' ( base of 60) and 0.00°( decimal ), preset, ets.
●Many different measurements are possible by using optional accessories.
●Special measuring attachment suitable to the work-price are available on request, with which the measuring applications are getting wider.
●With data output function

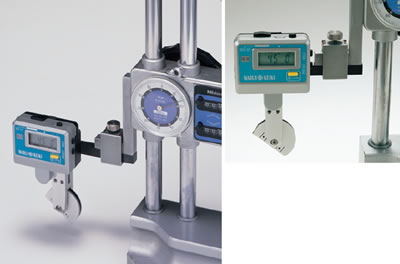

■Example of using

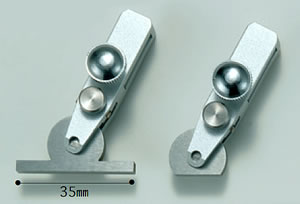

●Example of using auxiliary measuring attachment



■Specification
Part Number HG-36
Measurement range 180°
Minimum reading 1’ or 0.01°
Instrument error ±5’
Repeatability 1'
Display unit 0° 0’ (base of 60) or 0.00° (decimal)
Display LCD Display
Battery UM-4 type dry battery cells × 2 pcs
Battery life About 80 hours (UM-4 type dry battery cells x 2 pcs)
Main unit weight 150g approx.
Functions Count up direction selection, preset, displayed value hold
Data output*1/2 Mitutoyo digimatic output
Accessories Bracket, clamping screw
*1 Connector shape: Compatible with Mitutoyo connection cable (flat type)
*2 Not all Mitutoyo products are compatible.

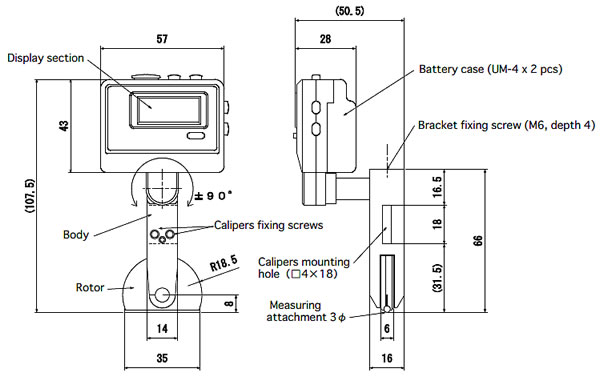

■dimensions

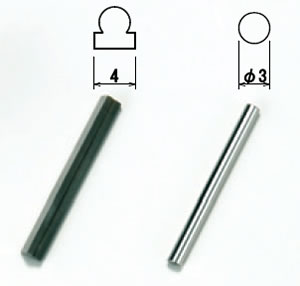

■Optional Accessories
Auxiliary measuring Flat measuring Round measuring
CL-L CL-S CL-P CL-B

Above prices do not include shipping fee and consumption tax, please ask for more information.
