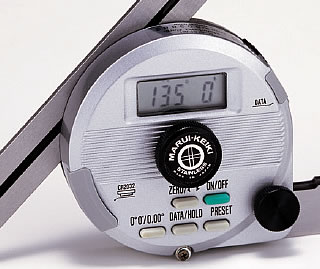

Digital Protractor DP-601/DP-601ST
This is a compact, light-weight, and high accurate protractor with easy- to - read LCD digital display. This reduces the burden on the person making the measurement, makes the inspection process efficient, and greatly contributes to increasing the reliability. Digital Protractor
Part Number : DP-601
Praice　￥65,000-
This is high accurate heavy-duty type digital protractor with high rigidity and stability. Thanks to high rigid body, this unit can be clamped by vices and etc.
In addition the stability is very high due to wide measuring surface.		 Digital Protractor - Heavy Duty Type
Part Number : DP-601ST
Praice　￥151,500-
■ Features
●Compact, lightweight, high accurate digital protractor
●The main parts are made of rust-resistant hardened stainless steel (SUS420J2)
●Display mode selection between 0° 0’ (base of 60) and 0.00° (decimal)
●Many different measurements are possible with optional accessories.
●With data output function

■Function part


■Specification
Part Number DP-601 DP-601ST
Measurement range -360°～+360° (Full circle)
Minimum reading 1' or 0.01°
Instrument error ±2'
Repeatability 1'
Response speed 3rps
Display unit 0°0' (base of 60) or 0.00° (decimal)
Battery Coin type lithium ion battery CR2032×1pc
Battery life About 2000 hours
Body material Hardened stainless steel (SUS420J2)
Main unit weight 270g approx. 1150g approx.
Functions Count up direction selection, preset, displayed value hold
Data output Mitutoyo digimatic output
*1 Connector shape: Compatible with Mitutoyo connection cable (flat type)
*2 Not all Mitutoyo products are compatible.
Accessories 150mm blade
*DP-601ST is not possible to affix the height gauge holder or the acute angle attachment.

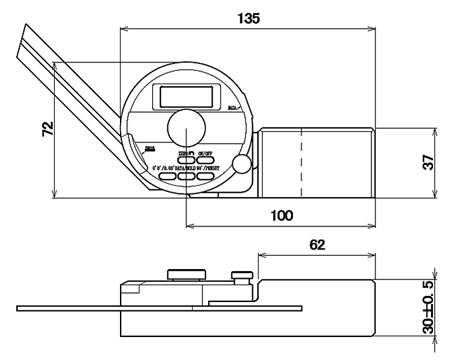

■Main　dimensions
●DP-601

●DP-601ST

Above prices do not include shipping fee and consumption tax, please ask for more information.
