■仕様
ローラ |
標準ローラー幅 |
シャフト |
フレーム |
形状 |
材質 |
形状 |
材質 |
形状 |
材質 |
φ25.4×2.0t |
スチール |
100〜600
(50とび) |
φ7丸鋼 |
スチール |
[50×25×2.3t |
スチール |

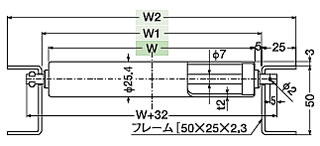

■寸法図
ローラー幅 |
100W |
200W |
300W |
400W |
500W |
600W |
製品重量
(kg) |
P30 |
1.0m |
10 |
15 |
20 |
25 |
31 |
35 |
1.5m |
15 |
23 |
30 |
37 |
45 |
52 |
2.0m |
20 |
30 |
40 |
50 |
60 |
69 |
P50 |
1.0m |
8 |
11 |
14 |
17 |
21 |
24 |
1.5m |
11 |
16 |
21 |
25 |
30 |
34 |
2.0m |
15 |
21 |
27 |
34 |
40 |
46 |
P75 |
1.0m |
6 |
9 |
11 |
13 |
15 |
18 |
1.5m |
9 |
13 |
16 |
19 |
22 |
25 |
2.0m |
13 |
17 |
21 |
26 |
30 |
34 |
フレーム内幅(W1) |
110mm |
210mm |
310mm |
410mm |
510mm |
610mm |
フレーム外幅(W2) |
160mm |
260mm |
360mm |
460mm |
560mm |
660mm |
ローラー1本の重量(kg) |
0.19 |
0.33 |
0.47 |
0.61 |
0.76 |
0.89 |
ローラー1本の耐荷重(kgf) |
25 |
25 |
25 |
20 |
17 |
14 |
■品番例
頭品番 |
- |
ローラー幅(W) |
- |
ピッチ(P) |
- |
機長(L) |
SLS25 |
300 |
30 |
2000 |
■仕様
品番 |
ピッチ(P) |
ローラ幅(W) |
機長(L) |
価格 |
SLS25-100-30-1000 |
30 |
100 |
1000 |
¥28,300- |
SLS25-100-30-1500 |
1500 |
¥42,000- |
SLS25-100-30-2000 |
2000 |
¥55,500- |
SLS25-150-30-1000 |
150 |
1000 |
¥30,000- |
SLS25-150-30-1500 |
1500 |
¥44,500- |
SLS25-150-30-2000 |
2000 |
¥58,800- |
SLS25-200-30-1000 |
200 |
1000 |
¥31,200- |
SLS25-200-30-1500 |
1500 |
¥46,100- |
SLS25-200-30-2000 |
2000 |
¥61,000- |
SLS25-250-30-1000 |
250 |
1000 |
¥33,500- |
SLS25-250-30-1500 |
1500 |
¥49,700- |
SLS25-250-30-2000 |
2000 |
¥65,500- |
SLS25-300-30-1000 |
300 |
1000 |
¥35,000- |
SLS25-300-30-1500 |
1500 |
¥52,000- |
SLS25-300-30-2000 |
2000 |
¥68,700- |
SLS25-400-30-1000 |
400 |
1000 |
¥38,000- |
SLS25-400-30-1500 |
1500 |
¥56,300- |
SLS25-400-30-2000 |
2000 |
¥74,300- |
SLS25-500-30-1000 |
500 |
1000 |
¥41,700- |
SLS25-500-30-1500 |
1500 |
¥61,700- |
SLS25-500-30-2000 |
2000 |
¥81,600- |
SLS25-600-30-1000 |
600 |
1000 |
¥44,500- |
SLS25-600-30-1500 |
1500 |
¥66,000- |
SLS25-600-30-2000 |
2000 |
¥87,100- |
品番 |
ピッチ(P) |
ローラ幅(W) |
機長(L) |
価格 |
SLS25-100-50-1000 |
50 |
100 |
1000 |
¥18,100- |
SLS25-100-50-1500 |
1500 |
¥27,000- |
SLS25-100-50-2000 |
2000 |
¥35,500- |
SLS25-150-50-1000 |
150 |
1000 |
¥19,100- |
SLS25-150-50-1500 |
1500 |
¥28,500- |
SLS25-150-50-2000 |
2000 |
¥37,500- |
SLS25-200-50-1000 |
200 |
1000 |
¥19,800- |
SLS25-200-50-1500 |
1500 |
¥29,300- |
SLS25-200-50-2000 |
2000 |
¥38,700- |
SLS25-250-50-1000 |
250 |
1000 |
¥21,000- |
SLS25-250-50-1500 |
1500 |
¥31,000- |
SLS25-250-50-2000 |
2000 |
¥41,100- |
SLS25-300-50-1000 |
300 |
1000 |
¥21,800- |
SLS25-300-50-1500 |
1500 |
¥32,200- |
SLS25-300-50-2000 |
2000 |
¥42,600- |
SLS25-400-50-1000 |
400 |
1000 |
¥24,000- |
SLS25-400-50-1500 |
1500 |
¥35,600- |
SLS25-400-50-2000 |
2000 |
¥47,100- |
SLS25-500-50-1000 |
500 |
1000 |
¥26,200- |
SLS25-500-50-1500 |
1500 |
¥39,000- |
SLS25-500-50-2000 |
2000 |
¥51,300- |
SLS25-600-50-1000 |
600 |
1000 |
¥28,000- |
SLS25-600-50-1500 |
1500 |
¥41,300- |
SLS25-600-50-2000 |
2000 |
¥54,700- |
品番 |
ピッチ(P) |
ローラ幅(W) |
機長(L) |
価格 |
SLS25-100-75-1000 |
75 |
100 |
1000 |
¥13,000- |
SLS25-100-75-1500 |
1500 |
¥19,500- |
SLS25-100-75-2000 |
2000 |
¥25,500- |
SLS25-150-75-1000 |
150 |
1000 |
¥13,800- |
SLS25-150-75-1500 |
1500 |
¥20,300- |
SLS25-150-75-2000 |
2000 |
¥26,700- |
SLS25-200-75-1000 |
200 |
1000 |
¥14,200- |
SLS25-200-75-1500 |
1500 |
¥21,000- |
SLS25-200-75-2000 |
2000 |
¥27,800- |
SLS25-250-75-1000 |
250 |
1000 |
¥15,000- |
SLS25-250-75-1500 |
1500 |
¥22,000- |
SLS25-250-75-2000 |
2000 |
¥29,100- |
SLS25-300-75-1000 |
300 |
1000 |
¥15,500- |
SLS25-300-75-1500 |
1500 |
¥23,000- |
SLS25-300-75-2000 |
2000 |
¥30,300- |
SLS25-400-75-1000 |
400 |
1000 |
¥17,000- |
SLS25-400-75-1500 |
1500 |
¥25,100- |
SLS25-400-75-2000 |
2000 |
¥33,200- |
SLS25-500-75-1000 |
500 |
1000 |
¥18,500- |
SLS25-500-75-1500 |
1500 |
¥27,300- |
SLS25-500-75-2000 |
2000 |
¥36,000- |
SLS25-600-75-1000 |
600 |
1000 |
¥19,500- |
SLS25-600-75-1500 |
1500 |
¥29,000- |
SLS25-600-75-2000 |
2000 |
¥38,300- |
■ローラー単品(シャフト付)
品番 |
ピッチ(P) |
価格 |
SLS25-100 |
100 |
¥700- |
SLS25-150 |
150 |
¥800- |
SLS25-200 |
200 |
¥800- |
SLS25-250 |
250 |
¥900- |
SLS25-300 |
300 |
¥900- |
SLS25-400 |
400 |
¥1,000- |
SLS25-500 |
500 |
¥1,200- |
SLS25-600 |
600 |
¥1,200- |
|
