■Features of non-destructive measurement
●Measured fruits and vegetables can be shipped as it is. No disposals!
●Measures many samples in short time.
●Does not soil the circumference and no waste.

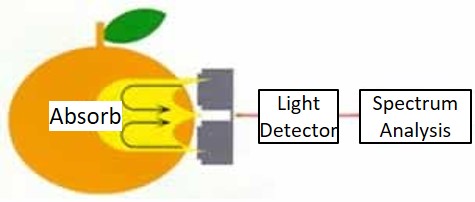

■Measurement principle By comparing an irradiated light to a fruit and
the returning light from the fruits, sugar content and acidity are measured.
■Storage of measurement data Number of measured data can be up to 4000
in MB32BA-100R-1 series.

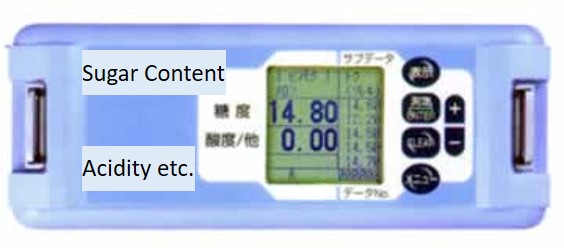

■Display of measured result

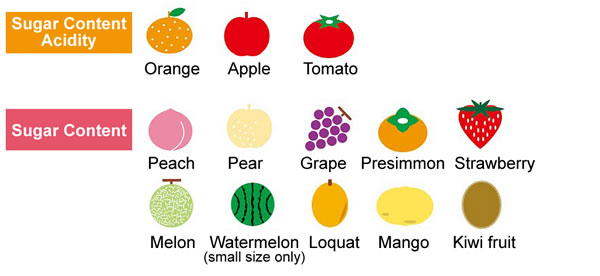

■Measureable items
■Specification
| Measurement Method |
Near-infrared spectroscopy analysis (Interactance) 600 to 1000 nm |
| Measurement time |
2 sec or more, differs depending on items (fruits) |
| Data Storage |
Approx. 4000 datas. (needs optional data reading software) |
| Recommended environment |
Circumference temperature: 5 to 35 Celcius
Relative humidity: 25 to 80 % (when no dew condensation)
|
| Power Source |
AC100V±10% (50/60Hz) 100VA
Battery 12V (option)
Cigar lighter 12V (option)
|
| Dimensions |
Height 240 × Width 300 × Depth 118mm |
| Weight |
Approx. 5kg (excluding battery) |
| Product Number |
Product Name |
Price |
| MB32BA-100R-1 |
Non-Destructive Saccharimeter & Acidimeter
(measurement item 1)
|
943,000 JPY |
| MB32BA-100R-2 |
Non-Destructive Saccharimeter & Acidimeter
(measurement item 2)
|
1,096,000 JPY |
| MB32BA-100R-3 |
Non-Destructive Saccharimeter & Acidimeter
(measurement item 3)
|
1,251,200 JPY |
| MB32BA-100R-46 |
Non-Destructive Saccharimeter & Acidimeter
(measurement item 4 to 6) |
1,397,300 JPY |
■Option
| Main Body Case |
Battery ( MB32B1600-K ) |
 |
 |
| Product Number |
Product Name |
Price |
| MB32BODYCASE |
Main body case |
Contact Us |
| MB32CONTROLSOFT |
Receipt-of-goods management software* |
Contact Us |
| MB32DATASOFT |
Data reading software * |
Contact Us |
| MB32LIGHTERCABLE |
Cigar lighter cable |
Contact Us |
| MB32SHIELDCOVER |
Light shielding cover |
Contact Us |
| MB32SPECTRUMCABLE |
Spectrum photometer function |
Contact Us |
| MB32T-5K |
Battery |
Contact Us |
*Needs your PC
< Caution >
●The Data Reading Software and the Receipt-of-Goods Management Software
operates under Windows 98, 2000, XP (Japanese Version). Further, you may
need adequate settings on your PC to run these software properly.
●Needs RS-232C cross cable (D-sub 9pin, female-female). For connection
to USB terminal in your PC, use USB-RS232C adaptor.
|
