Digital Angle Sensor　DP-621
	This is a lightweight, compact, high accurate rotation angle detector. It does not require any wiring because it is battery driven and the digital display section is built- in. With data output function.	Digital Angle Sensor Part Number : DP-621 Praice　￥82,600-

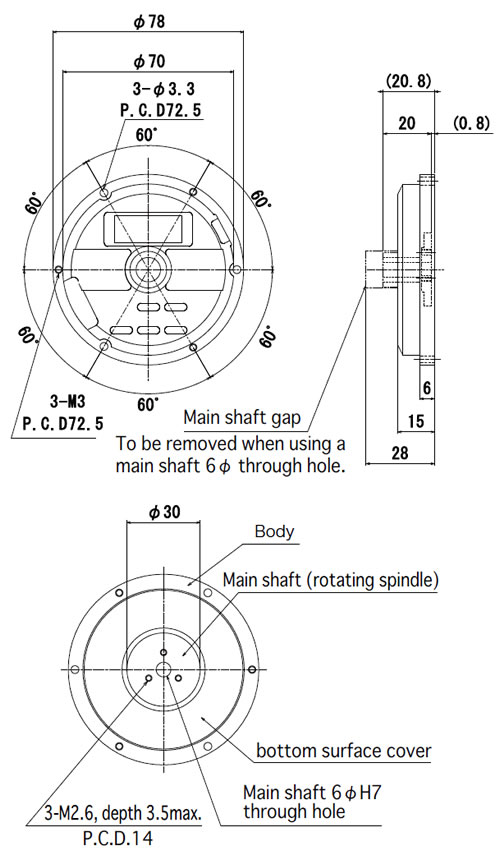

■Specification Part Number DP-621 Measurement range -360°〜 +360° (Full circle) Minimum reading 1’ or 0.01° Instrument error ±2’ Repeatability 1’ Response speed 3rps Display unit 0° 0’ (base of 60) or 0.00° (decimal) Battery Coin type lithium ion batter CR2032 x 1pc Battery life About 2000 hours Main unit weight 110g approx. Functions Count up direction selection, preset, displayed value hold Data output*1/2 Mitutoyo digimatic output Accessories Monitor battery *1 Connector shape: Compatible with Mitutoyo connection cable (flat type) *2 Not all Mitutoyo products are compatible. ■dimensions

Above prices do not include shipping fee and consumption tax, please ask for more information.
